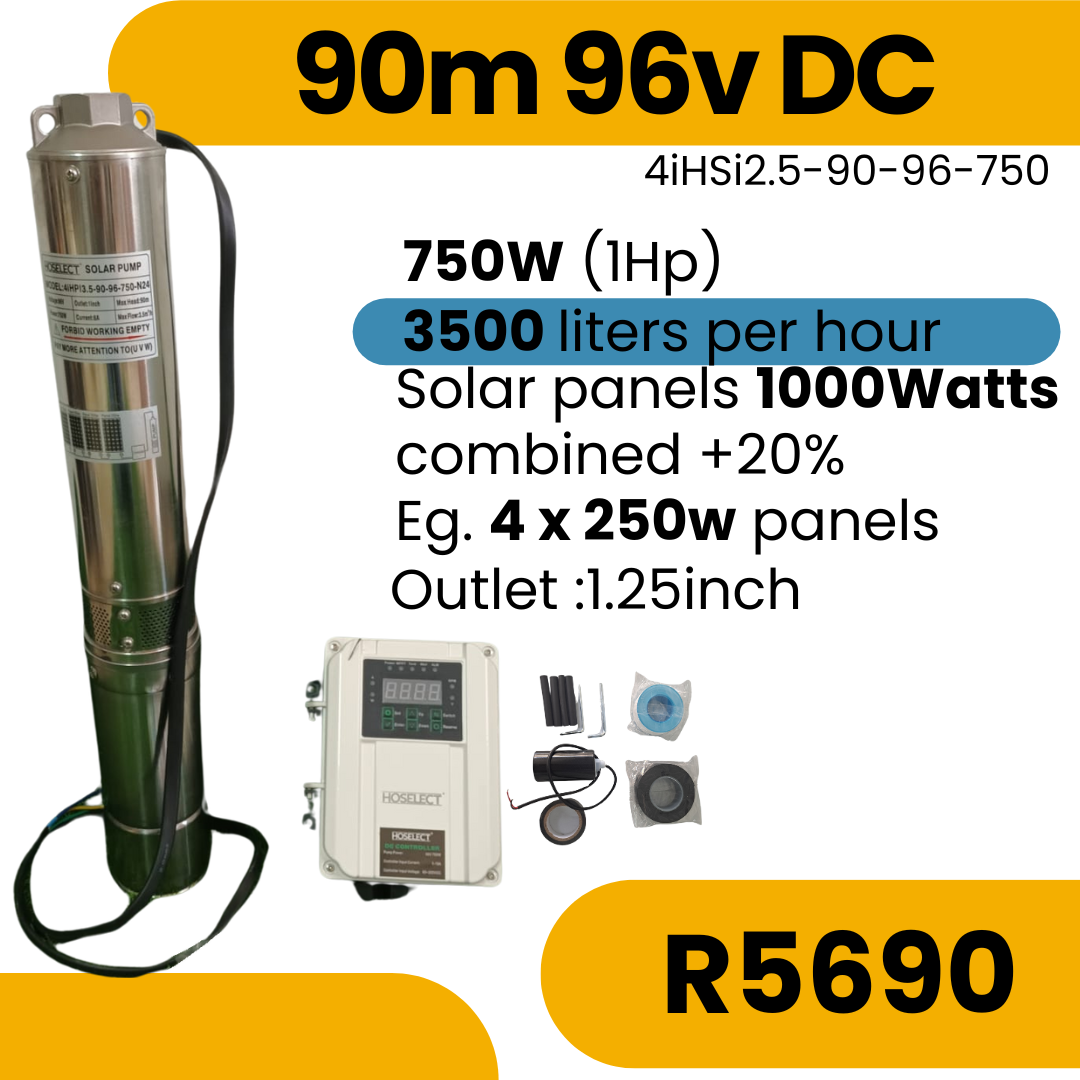

Max Head: 90m
Max Flow 3500 liter per hour
96v
750W
1Hp
This pump needs 100pwatts of solar panels combined.**
Eg. 4x 2500watt panels
**We suggest you go 20% bigger since most solar panels on the market in South Africa is around 23% less power than what it tells you on the lable.
Solar panels sold separately.
Energy supply:
1. Solar panels (DC)
2. Battery (DC)
Why you should choose this borehole pump.
* They sport a brushless permanent magnetic motor, which means efficiency is improved by 20%-40%,
* The frequency conversion and controller is outside
* Soft start running, makes motor life longer
* Powered by DC (DC power include: solar panel or battery)
* Comes with an MPPT controlled, to maximize the energy you get from the sun even on cloudy days
* Reverse protection
* Locked rotor protection
* Low water level sensor protection (built in)
* High water level sensor protection
* DC input option by manual
Supply voltage range: 96~490V DC (Solar panel Voc voltage);
What comes in the box
-Borehole Pump
-Controller
-Water level sensor for tank/dam
-User manual
-Accessories (sealers & tape)
-A free gift when you order from our website or WhatsApp ater level sensor (for your tank/dam)
